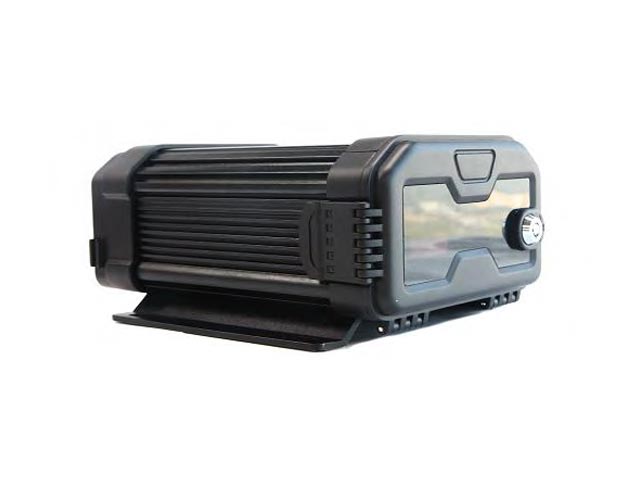

ViPro MVR-606-2IP - MVR-606-2IP Advanced 6CH MDVR, WD1+2ch 720p resolution, HDD recording
ViPro MVR-606-2IP - Image 2

Click for zoom

SKU: 022.047.0021

ViProMVR-606-2IP

Advanced 6CH MDVR, WD1+2ch 720p resolution, HDD recording
To see purchase prices you must be a registered user!
Indicative retail price (incl. 24% VAT): 1.979,04 €
MVR-606-2IP is an advanced 6CH Hybrid Mobile Digital Video Recorder specially designed for vehicle surveillance solution and remote monitoring at high-definition video quality. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, network, and GPS positioning technology. MVR-606-2IP supports video recording in 720P, WD1, Half D1 and CIF formats, vehicle travel information recording and wireless data upload. With center software it also achieves alarm linkage central monitoring, remote management and playback analysis. It is powerful with modular design, flexible installation, easy maintenance and high reliability.

Package weight: 0,500kg
Package volumetric: 0,900kg
Support 4CH WD1+2CH 720P IP
Rugged metal and modular design for easy maintenance
Support 2.5" HDD storage (up to 2TB) and SD card for mirror recording
Dual streams for local recording and wireless transmission
Built-in GPS for location tracking (optional)
Built-in 3G/4G for live view and remote management (optional)
Built-in WIFI for video files and alarm files download (optional)
OSLinux 3.0.8
Control ModeMouse, Network, Easy Check*, CP4 (Multi-function Control Panel)
Video input4 channels WD1 + 2 channels 720P
Video output1 channel
Total Resource100/120fps @ WD1 + 60fps @ 720P
Video signal standardElectrical level: 1Vpp, Impedance : 75Ω NTSC/PAL Optional
Audio input6 channels (incl. IPC x 2)
Audio output1 channel
Audio signal standardElectrical level: 2Vpp, Input impedance: 4.7kΩ
Display Split1/4/9
Display OSDGPS information, alarm, vehicle number, speed, date/time
Display operationSemi-transparent GUI
Recording
Video/Audio CompressionVideo: H.264, Audio:ADPCM, G.711A, G.711U
Image resolution analogPAL: WD1 (928x576), WHD1 (928x288), WCIF (464x288), D1 (704x576), Half D1 (704x288), CIF (352x288)
NTSC: WD1 (928x480), WHD1 (928x240), WCIF (464x240), D1 (704x480), Half D1 (704x240), CIF (352x240)
Image resolution digital720p (1280x720)
Image Quality1~8 levels adjustable (1 is the best)
Recor ModeBoot up/Manual/schedule/Alarm (sensor trigger, speed, acceleration, video loss, temperature)
Pre-recording0 ~ 60 minutes
Post-recording0 ~ 30 minutes
Mirror/Dual RecordingYes
Playback
Playback Channel1 channel by local playback
Search ModeDate/time, channel, event
Network
EthernetRJ45 port (100M) x1
IPC Ethernet6-pin DJ (100M x 2, PON power supply)
WIFI802.11b/g/n (optional)
3G/4GEVDO/WCDMA/TDD-LTE/FDD-LTE (single module supported)
Locating
GPSlocation tracking, speed detection and sync time
Storage
Hard Disk2.5? SATA HDD x 1 (up to 2TB)
Interface
USBUSB 2.0 x 2 (1 for mirror record, 1 for easy check)
SDSD x1
RS232/RS485RS232 x2 / RS485 x2
Sensor8 inputs, 2 outputs
SerialG-sensor (internal)
Speed1 channel pulse speed detection
PanelCP4 (The multi-functional panel) optional
Others
Power supplyDC8~36V
Power output12V@1A, 5V@1A
Dimension (W x D x H)255.3mm x 150mm x 89.1mm
Weight2.2kg
Operating temperature-40?~70?
Operating relative humidity8% ~ 90% (No Condense)
WaterproofIP54
CertificationsCE, FCC
PC SoftwarePlayback Analysis (Ceiba II)
Datasheets
PDF datasheet
User manuals
PDF manual
