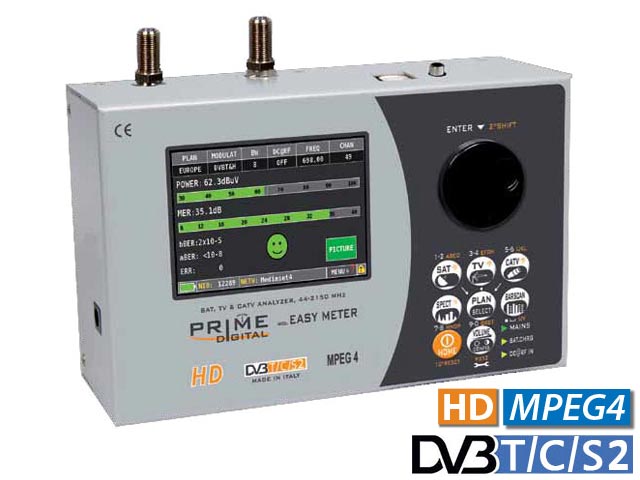

RoverPrimeDigital Easy Meter

Name: Rover PrimeDigital Easy Meter
Brand: Rover
SKU: 900.013.0180
Price: 1013.08 EUR
Availability: LimitedAvailability

Field meter DVB-S2, DVB-T, DVB-C

To see purchase prices you must be a registered user!

Indicative retail price (incl. 24% VAT): 1.013,08 €

Description
Specifications
Related documents

The most easy, precise and complete combined meter for SAT, TV and CATV. Accurate and easy to use. LCN programs list & PID. DVB-S2, DVB-T (T2 Optional), DVB-C measurements. Spectrum with memory peak. Full MPEG2 and MPEG4 SD & HD. Robust metal cover. Automemory. Waterproof bag. Autoquality. Long duration LI-PO batteries.

Package weight: 1,200kg
Package volumetric: 1,400kg

Frequency RangeTV 44 to 880 MHz, SAT 930 to 2.150 MHz

Level accuracy3 dB

Input Impedance75 ohm (interchangeable “F” connector)

Power range MEAS.TV 10 to 100 dBµV, SAT 28 to 92 dBµV, 120 dBµV with ext. attenuator

Fast spectrum with MAX HOLDfull spect. capabilities with memory peak, variable span and automatic reference level

MeasAll digital and analog measurements

QualityAuto quality Test

TV Memory planWorld Wide countries with related channels plans pre-memorized

SAT Memory PlanMore than 2.000 transponders prememorized for world wide Satellite

Specifications:

DC voltage at RF input5 - 12 - 18 - 24 V

BatteryRechargeable Li-Po battery pack, 2/3 hour duration

Power supply & Battery charger12 Vdc

USB PC InterfaceFor SW upgrade and memory plan management

HousingMetal box and rain proof bag

SizeH 120 x W 180 x D 65 mm (meter only)

weight1,2 Kg.

For full specifications see the PDF file.

Datasheets

PDF datasheet

Warranty / repair terms
