ViProR63-136CAI

Name: ViPro R63-136CAI
Brand: ViPro
SKU: 022.047.0068
Price: 386.38 EUR
Availability: LimitedAvailability

Rear view camera with waterproof IP69K housing, 420TVL

To see purchase prices you must be a registered user!

Indicative retail price (incl. 24% VAT): 386,38 €

Description
Specifications
Related documents

Rear view camera with waterproof IP69K housing, with 1/3" Sony Color CCD image sensor and 420TVL resolution.

Package weight: 0,300kg
Package volumetric: 0,300kg

IP69K Waterproof and weather resistant housing for outdoor use

Excellent night vision; day/night sensor for automatic adjustment

Mirror / Normal image switch (depending on the chips)

Environment ratingOutdoor

Resolution420TVL (600TVL optional)

Image sensor1/3" Sony Color CCD

Lensf=2.8mm / f=3.6mm optional

Effective pixels (NTSC/PAL)500(H)*582(V) / 510(H)*492(V)

Sensing Area4.9mm(H)*3.7mm(V)

Minimum Illumination0.05Lux (day)/F1.2, 0Lux (with IR)

Scanning System2:1 Interlace

Sync SystemInternal

S/NMore than 48dB

Electronic Shutter1/50(PAL)~1/100,000 sec, 1/60(NTSC)~100,000 sec

White BalanceAuto

Auto Gain ControlAuto

Back Light CompensationAuto

Gamma Correction0.45

Adjust Angle120Β° / 92Β°

Audio (Microphone)Optional

IR18 IR LEDs

IR DistanceApprox. 15 meters

Power supplyDC 12V

Current consumptionMax. 450mA

Working temperature-20° C ~ 70° C

Storage temperature-40° C ~ 80° C

Working HumidityRH95% Max.

Waterproof levelIP69K

Weight0.32kg

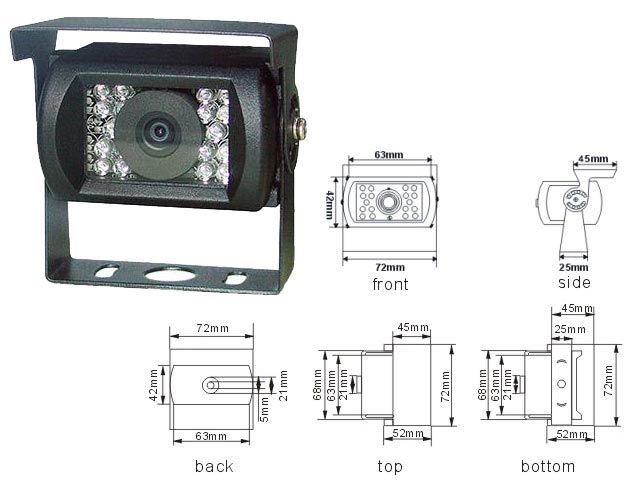

Size (DxWxH)72 x 86.6 x 52 mm

CertificationsCE, E13

Datasheets

PDF datasheet

Warranty / repair terms
