ViPro N-62 - N-62 Mobile IP camera HD 720p, 30fps, H.264

Click for zoom

SKU: 022.047.0012

ViProN-62

Name: ViPro N-62
Brand: ViPro
SKU: 022.047.0012
Price: 447.64 EUR
Availability: LimitedAvailability

Mobile IP camera HD 720p, 30fps, H.264

To see purchase prices you must be a registered user!

Indicative retail price (incl. 24% VAT): 447,64 €

Description
Specifications
Related documents

Outdoor IP camera specially designed for vehicle monitoring environment with high-speed processor and embedded operation system, combining H.264 video compression and decompression technology, network technology. Featuring high-definition (1280x720) image quality, supports triple streams for better network transmission while its smart design is very convenient for installation and maintenance.

Package weight: 0,200kg
Package volumetric: 0,300kg

Support HD 1280x720@30fps

Day/Night(ICR), Digital Noise Filter, Super Wide Dynamic Range, Auto White Light Compensation

High speed, long distance real time transmission

Three stream technology, phone monitoring

IP66 waterproof and dustproof

Anti-vibration, vandal resistant

Built-in power loss protection

PON(DC 12V)/POE(48V)

H.264 audio and video coding standard

Support multiple network protocols

Ideal for vehicle video surveillance

Image Sensor1/3" CMOS SONY IMX238

Video resolution1280(H)x720(V)

Video signal system50/60 Hz

Minimum Illumination0.05Lux(Color Illumination), F1.2

Electronics Shutter1/25 Sec - 1/10000 Sec

Day/NightIR-CUT

Wide Dynamic RangeDigital Wide Dynamic Range

Backlight CompensationSupport

S/N>40db

Wide Dynamic Range>80db

IR<8m

Video CompressionH.264

Optical Lens

Port6-pin DJ M12 (PON) / RJ45 (POE)

ApertureFixed aperture F1.8

Lens2.8mm, 4mm, 6mm, 8mm Optional

Audio/Video Encode

Video CompressionH.264

Compression Output Rate768Kbps-6144Kbps

Image ResolutionMain Stream:720p @30fps, Network Sub Stream:VGA @25fps, Record Sub Stream:VGA @ 30fps

CBR/VBRSupport

Built-in MicSupport

Audio compression standardADPCM, G.711A, G.711U

Network

Maximum Image1280x720

Frame30FPS

Image SettingChroma, contrast, saturation and sharpness

ProtocolHTTP, TCP , ARP, RTSP, UDP, RTCP, SMTP, DHCP, DNS, DDNS, PPPoE, IPV4, UPnP, NTP

ONVIFSupport

Client Terminal PreviewBuilt-in web server, IE browser

Interface

Audio InputSupport

POESupport

StorageClient Terminal / MDVR

Others

Power SupplyPON(DC12V)/POE(DC48V)

Power<2w (Day), <4w (Night)

Waterproof RatingIP66 (IP65 with audio)

Working temperature-40° C ~ 70° C

Working humidity0% to 90%

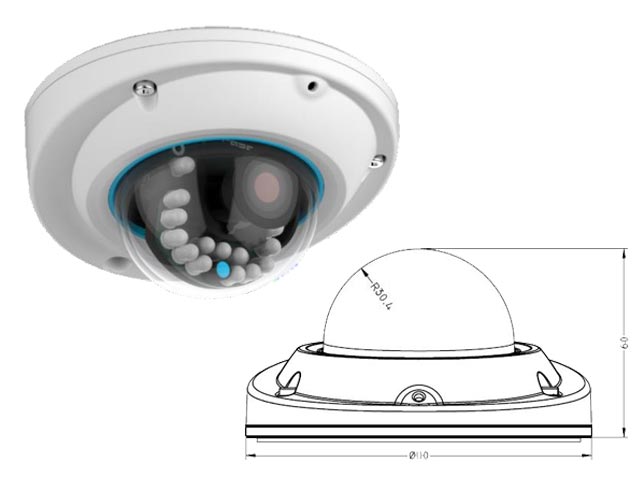

Dimension (L x W x H)110mm x 110mm x 60mm

Datasheets

PDF datasheet
