ViPro D-56-136CI - D56-136CI Waterproof dome camera 520TVL, IP67K, 24 IR LEDs

Click for zoom

SKU: 022.047.0009

ViProD-56-136CI

D56-136CI Waterproof dome camera 520TVL, IP67K, 24 IR LEDs
To see purchase prices you must be a registered user!
Indicative retail price (incl. 24% VAT): 306,28 €
Waterproof dome camera 520TVL, IP67K, 24 IR LEDs.

Package weight: 0,200kg
Package volumetric: 0,300kg
Waterproof and anti-vandal housing
Weather resistant
Compact profile
Night vision with 24 IR LEDs
IR distanceapprx. 20m
High resolution
Environment ratingIndoor
Resolution520 TV lines
Sensor1/3& Sony Super HAD Color CCD
TV SystemPAL/NTSC
Lens4.0mm
Effective pixelsPAL: 752(H)*582(V), NTSC: 768(H)*494(V)
Sensing Area4.9mm(H)*3.7mm(V)
Horizontal Sync. Frequency15.625KHz/15.734KHz
Vertical Sync. Frequency50Hz/60Hz
Minimum Illumination0Lux(IR on)/0.5Lux (day)/F1.2
Scanning System2:1 Interlace
Sync SystemInternal
S/NMore than 48dB
Electronic Shutter1/50(PAL)~1/100,000 sec, 1/60(NTSC)~100,000 sec
White BalanceAuto
Auto Gain ControlAuto
Back Light CompensationAuto
Gamma Correction0.45
Adjust Angle92°
Audio (Microphone)Optional
Video Output1.0Vp-p composite / 75Ω
IR24 IR LEDs
IR Distance20 meters
Power supplyDC 12V
Current consumptionMax. 300mA
Working temperature-20° C~70° C
Storage temperature-40° C~80° C
Working HumidityRH95% Max.
Waterproof levelIP67
Weight0.45kg

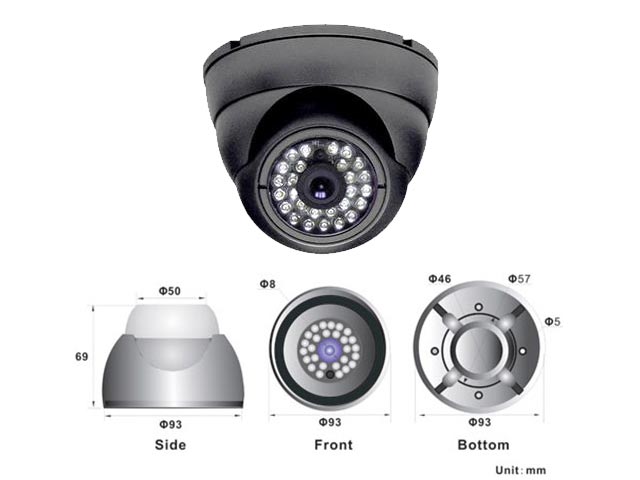

Size (DxWxH)∅93mm x 69mm x 50mm
CertificationsCE, FCC
Datasheets
PDF datasheet
