SANYOURELAY DSY2YH 5-12V 2P

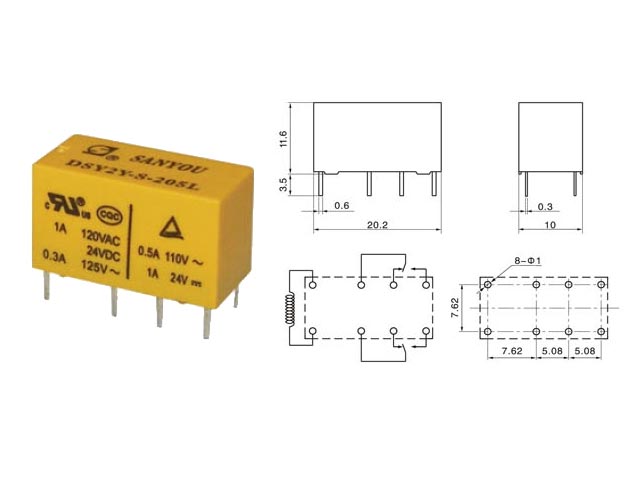

The Sanyou DSY2YH is a subminiature electromagnetic signal relay for PCB mounting, with two DPDT changeover contacts and a contact rating of up to 1A. The series is available with different coil voltages, including 5VDC and 12VDC.

Technical description

The DSY2Y series is designed for high-density electronic boards and uses silver-alloy contacts, a lightweight package and fast switching times. The H version identifies a specific coil-power option and must match the marking on the actual component.

Typical applications

Suitable for telecommunications equipment, computer peripherals, alarm systems, instruments, office equipment and signal-switching circuits.

Compatibility note

Before replacement, verify the actual coil voltage printed on the relay, the H suffix, DPDT configuration, 8-pin footprint and the permitted current for the real load. The 5VDC and 12VDC versions are not electrically interchangeable.
