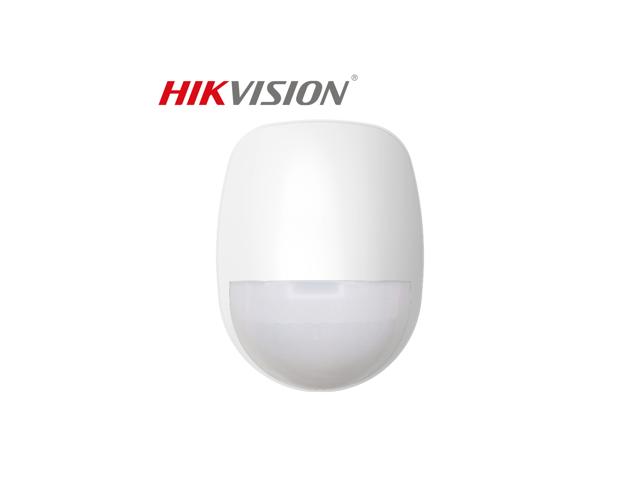

HIKVISIONDS-PDP18-EG2 PET

Hikvision DS-PDP18-EG2 PET wired PIR infrared detector 18m with pet immunity, suitable for indoor areas, alarm systems, professional installations, homes, offices and locations requiring reliable motion detection with reduced false alarms from small pets.

The Hikvision DS-PDP18-EG2 PET is a wired passive infrared PIR detector for indoor use, offering up to 18m detection range and a wide coverage angle of approximately 85.9-90 degrees. It features digital signal processing, 3D optics, digital temperature compensation, sealed optics to reduce insect interference and pet immunity function, depending on correct installation and sensitivity adjustment.

Technical description

The DS-PDP18-EG2 PET operates from 9-16VDC and includes High, Auto and Low sensitivity settings. Detection coverage reaches up to 18m, with 84 zones and 7 detection levels, plus creep-zone protection for coverage close to the detector. It supports onboard EOL resistors for alarm and tamper wiring, allowing easier adaptation to different alarm control panels.

Typical applications

Suitable for homes, shops, warehouses, offices, professional spaces, corridors, rooms, areas with small pets, wired alarm systems and Hikvision AX Hybrid Pro installations or other compatible panels with wired zones.

Compatibility note

The DS-PDP18-EG2 PET is a wired PIR detector and requires cabling to an alarm control panel. Pet immunity depends on pet weight, distance, sensitivity setting and correct mounting height. For proper operation, the 1.8-2.4m installation height should be followed and EOL resistor selection must match the alarm panel configuration.

Weight: approximately 0.068 kg. Product volumetric weight: approximately 0.052 kg.
