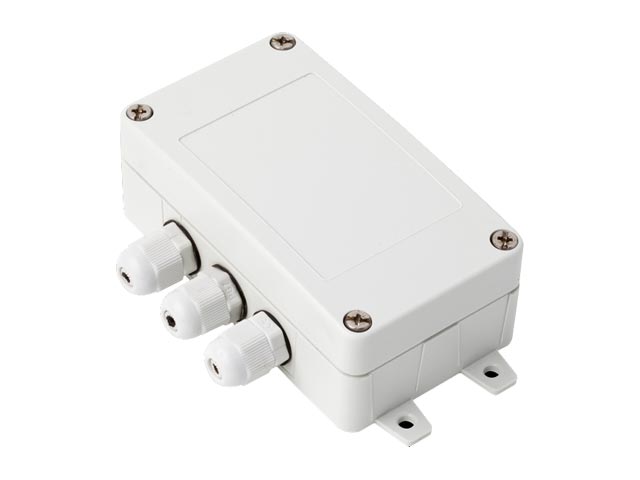

EldesEW-1B

Name: Eldes EW-1B
Brand: Eldes
SKU: 022.002.0088
Price: 57.27 EUR
Availability: LimitedAvailability

Wireless zone & PGM output expansion module

To see purchase prices you must be a registered user!

Indicative retail price (incl. 24% VAT): 57,27 €

Description
Specifications
Related documents

Wireless expansion module EW1B is a wireless device with 2 zones and 2 PGM outputs. This expansion module connects to Eldes wireless alarm systems and enables wireless access.The module allows to connect variοus additional devices such as motion sensors, sirens, magnetic door contacts. In addition it allows to connect and control up to 2 appliances: lighting, heating and other. EWB contains 3 batteries and IP65 rating enclosure.

Package weight: 0,400kg
Package volumetric: 0,400kg

Battery type1,5V Alkaline AA type

Number of batteries3

Battery operation time~18 months (might vary in different conditions)

Number of zones2

Zone connection typeNormally closed (NC)

Number of PGM outputs2

Maximum commuting PGM output valuesVoltage – 30V; current 500mA

Wireless transmitter-receiver frequency868 MHz

Wireless communication rangeUp to 30 meters in premises; up to 150 meters in open areas

Compatible with alarm systemsELDES wireless

Range of operating temperatures-20...+55?C

EW1B PCB dimensions38x60x12mm
