COMFBB6AAATC

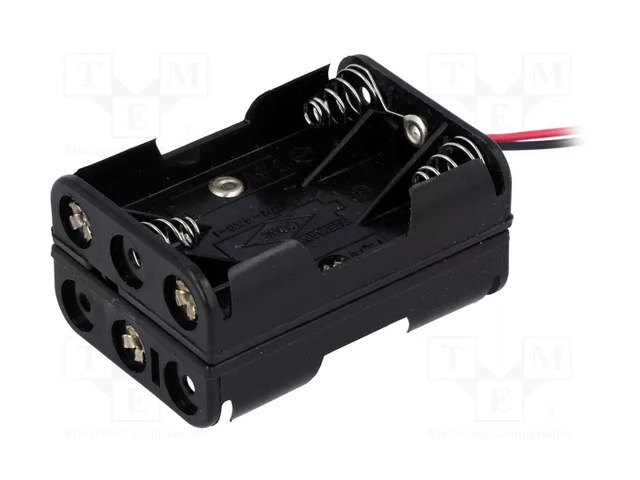

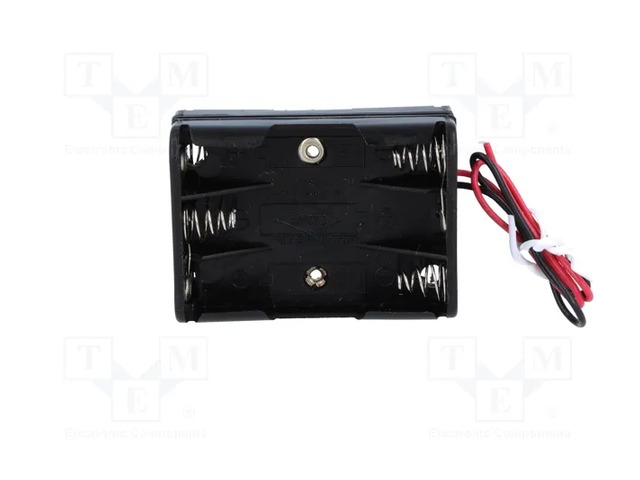

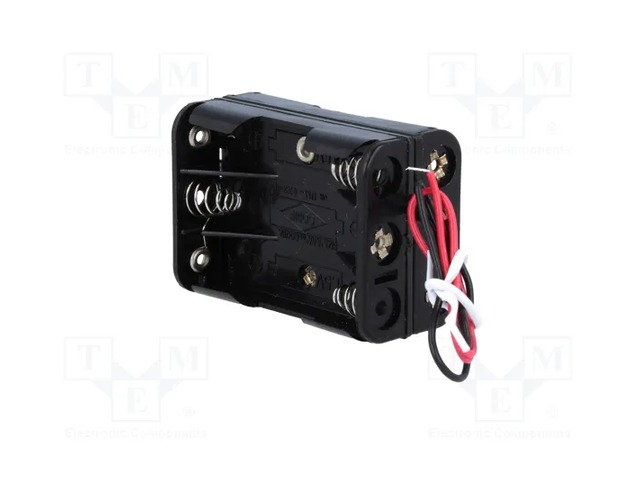

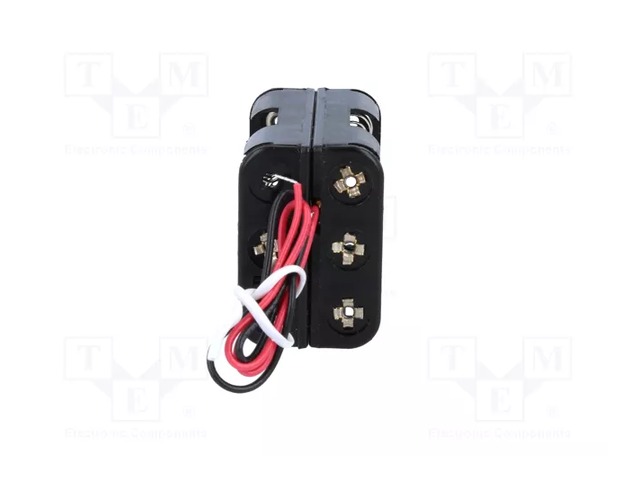

The COMF BH-463A is a battery holder for 6 AAA/R3 batteries with 150mm lead wires, suitable for powering electronic circuits, portable devices, educational applications, automation systems and small low-voltage projects.

The 6xAAA configuration provides a nominal output voltage of approximately 9V DC when using 1.5V alkaline batteries or approximately 7.2V DC when using 1.2V rechargeable Ni-MH batteries. The lead wires allow easy integration into circuits, PCBs, switches or portable electronic applications.

Technical description
The BH-463A battery holder accepts 6 AAA/R3 batteries and includes approximately 150mm lead wires for direct connection to the application. The wires are UL1007 AWG26 type, with stripped and tinned ends of approximately 5mm, making connection by soldering or integration into an electronic build easier.

Typical applications
Suitable for electronic projects, Arduino and educational builds, prototype boards, portable devices, toys, low-voltage LED lighting, small automation systems and circuits requiring power from 6 AAA batteries.

Compatibility note
Before use, the required voltage and current consumption of the device must be checked. With alkaline batteries the output is approximately 9V DC, while with rechargeable Ni-MH batteries it is approximately 7.2V DC. Correct polarity must also be observed when connecting the lead wires.

Gross listed weight: approx. 0.015kg
Volumetric weight: to be calculated according to final packaging
