CamelionCAMELION CR-1616

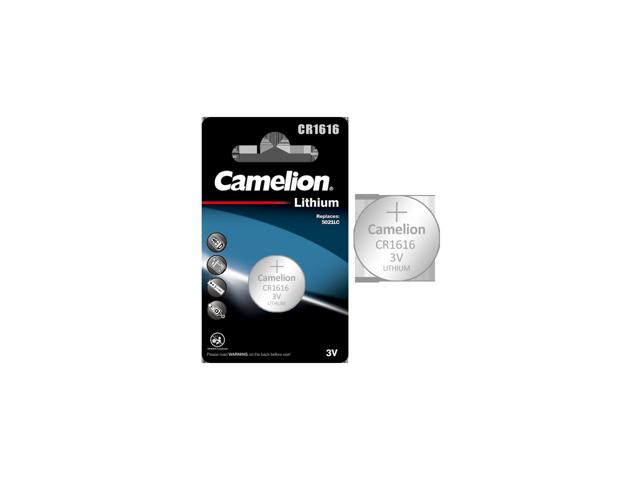

The Camelion CR1616 Lithium Coin Cell Battery 3V 50mAh 16.0x1.6mm is a non-rechargeable lithium coin cell with 3V nominal voltage and 50mAh capacity, intended for compact electronic devices using CR1616 size.

Technical description

The CR1616 uses lithium manganese dioxide (Li-MnO2) chemistry, a metal casing and measures 16.0x1.6mm. Camelion specifies a nominal capacity of 50mAh, approximate weight of 1.2g, an operating temperature range from -20°C to +60°C and storage temperature from 18°C to +28°C. The manufacturer specifies a minimum shelf life of 10 years.

Indicative applications

Suitable, depending on device requirements, for remote controls, car keys, watches, calculators, electronic scales, sensors, medical devices, alarm systems and memory-backup circuits.

Compatibility note

Replace only cells of the same CR1616 size, 3V nominal voltage and compatible mechanical dimensions. This is a primary cell and must not be recharged. Check polarity before installation and do not short-circuit the terminals.
