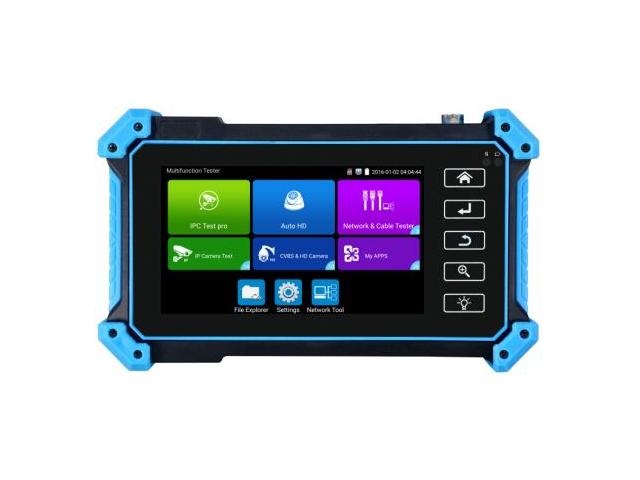

AVcamAV-IPC520B

Name: AVcam AV-IPC520B
Brand: AVcam
SKU: 002.008.0693
Price: 434.00 EUR
Availability: OutOfStock

tester κάμερας IP 5 ιντσών M-IPC-520B με είσοδο αναλογική, HD-TVI, HD-CVI, AHD, VGA

Για να δείτε τις τιμές αγοράς πρέπει να είστε εγγεγραμμένος χρήστης!

Ενδεικτική λιανική τιμή με ΦΠΑ 24%: 434,00 €

Περιγραφή
Χαρακτηριστικά
Σχετικά έγγραφα

Tester κάμερας IP 5 ιντσών M-IPC-520B με είσοδο αναλογική, HD-TVI, HD-CVI, AHD, VGA.Δοκιμή αναλογικής κάμερας,Δοκιμή κάμερας IP, υποστήριξη onvif, 4K, H.264 και H.265,Δοκιμή κάμερας HD-TVI, δοκιμή κάμερας HD-CVI, δοκιμή κάμερας AHD,Έξοδος ισχύος DC12V 3A, 48V PoE,Δοκιμή TDR καλωδίου RJ45, δοκιμή ποιότητας καλωδίου,Είσοδος VGA, υποστήριξη 1920 x 1200P 60FPS,Auto HD, αυτόματη αναγνώριση τύπου και ανάλυσης ομοαξονικής κάμερας HD,Δοκιμή καλωδίου UTP, ανίχνευση του κοντινού, του μεσαίου και του απομακρυσμένου σημείου σφάλματος της κρυσταλλικής κεφαλής του καλωδίου δικτύου

Βάρος συσκευασίας: 0,300kg
Ογκομετρικό συσκευασίας: 0,300kg

ScreenDisplay 5 inch IPS touch screen, 1920x1080 resolution

Video Mode CVBS1 channel BNC input, NTSC/PAL (Auto adapt) PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

IP Camera Test4K / H.265 / H.264, IP Discovery / Quick ONVIF / IPC test / RTSP play / Client APK. Rapid Video Auto view the video, create testing report

Hikvision test toolsupport batch activate Hikvision cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.

Dahua test toolsupport batch activate Dahua cameras and modify IP address, username and password. Self-defined modify channel name.

HD Coaxial test8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu,8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu,8MP AHD camera test, 3840 x 2160P 15FPS, UTC control / call OSD menu,Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu

VGA input1 channel VGA input, support 1920 x 1200P 60FPS. The resolution as follow:1920 x 1200P 60FPS / 1920?1080P 60FPS / 1792?1344P 60FPS / 1680x 1050P 60FPS / 1600x1200P/900P 60FPS / 1440x900P 60FPS / 1360x768P 60FPS / 1280x1024/960/800/768/720P 60FPS / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS

Zoom Image4x zoom, to enlarge image, screen snapshot, record, save, view and record and play back

Power output12V / 3A power, Output DC12V/3A power out, supply temporarily power for the camera

PoE power output48V PoE power output, max power 25.5W

Cable testUTP cable test, Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

RJ45 TDR cable test,Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M

Tester Play Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone)

Network testTrace route, Link monitor, DHCP server, port flashing, Ping test

Wi-FiBuilt in WIFI, speeds 150M, display wireless camera image

Audio test1 channel audio signal input, test whether sound normal

Power managementDisplay DC 12V input & output voltage and power in real time

Data monitorCaptures and analyzes the command data from controlling device, also can send hexadecimal

Power supplyDC 12V 1A

BatteryBuilt-in 7.4V Li-ion battery, 3350mAh

RechargeableAfter charging 3-4 hours, normal working time 6 hours

Operation settingOSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

Auto off1-30 (mins)

Working Temperature-10 - +50

Working Humidity30% - 90%

Dimension183mm x 110mm x 40mm (Tester);?255mm x 140mm x 98mm (Colour box)

Weight320g (Tester);?1030g (Tester with spare parts, black package, box)

Φυλλάδια

PDF datasheet
